High Pressure Compressors
Technical University of Munich

Helium Recovery Plant

Recovery

New construction of a helium recovery plant

  • delivery of a helium recovery plant
    • ballon 2x20m³
    • high pressure compressor (3x)
    • PulseDryer
    • high pressure distribution panel
    • gasmeters
    • gas quality measurement
  • automatic distribution of gasflow with the HPDP
  • complete piping from process lines to high pressure storage
Realization date
07/2022
Performance data

Capacity Compressor: 173 m³/h

Capacity GHe:

  • 1 HP-Storage 10,8m³ @ 200 Bar
  • 2 Ballon each 20m³

2 storage groups

4 process lines

Contact

Technical University of Munich

Dr. Marc Wilde
Tel:  + 49 89 28912420
James-Franck Str. 1
85748 Garching

High Pressure Compressors
High Pressure Compressors
Gas-Ballon and High Pressure Storage
Gas-Ballon and High Pressure Storage
Gasmeter
Gasmeter

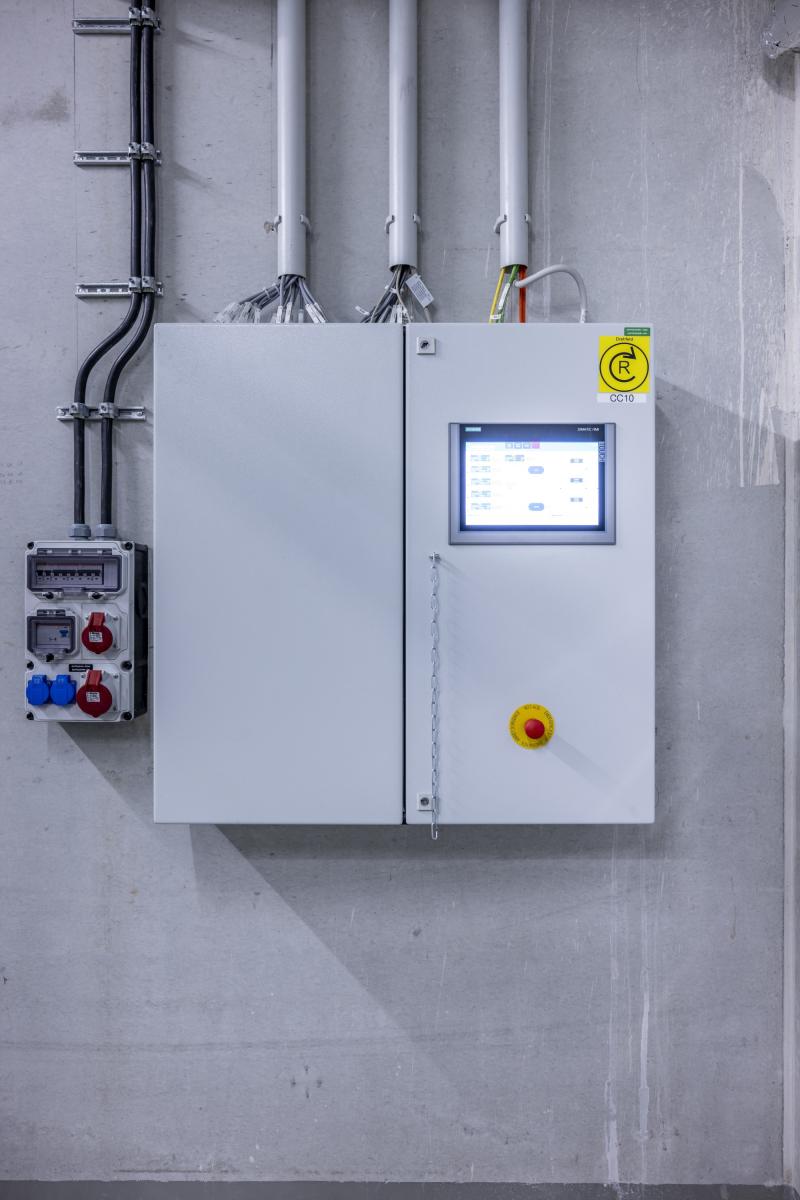

Control Cabinet
Control Cabinet

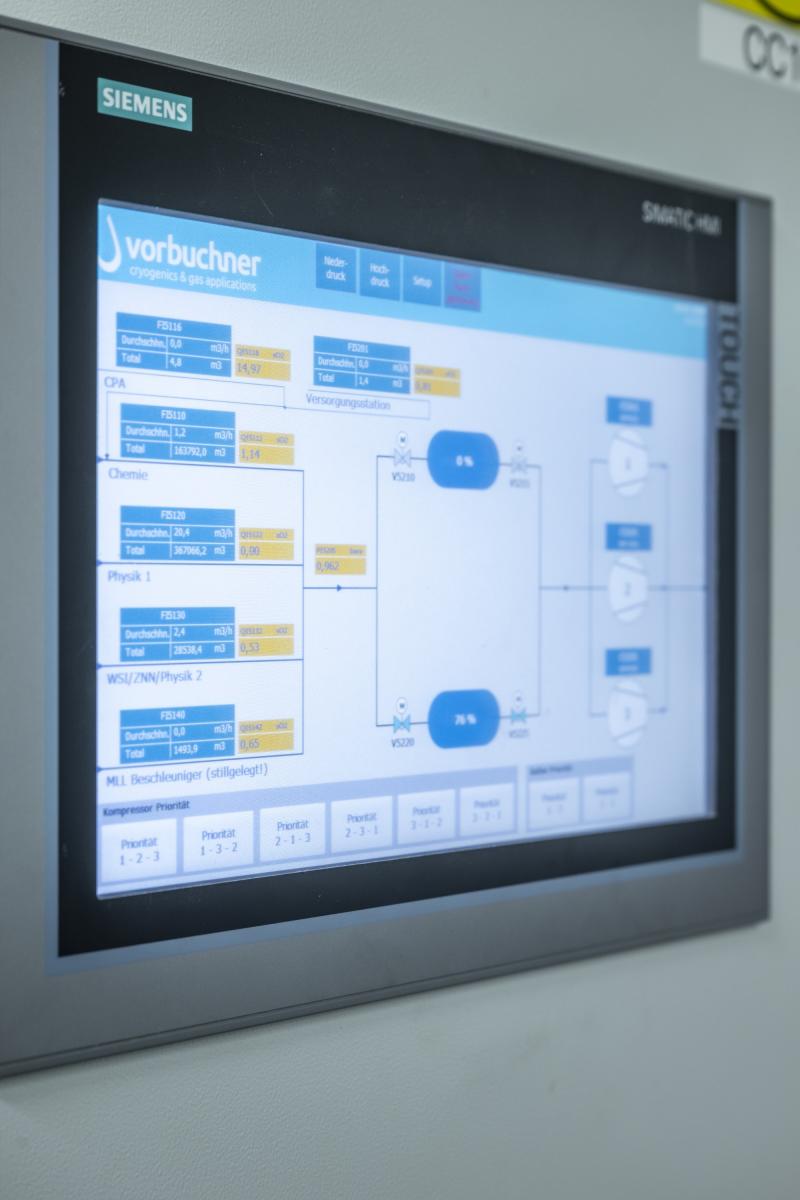

HMI
