Construction of a VL100 helium liquefier, 40 L/h, at the Institute of Physics in Zagreb
Design, manufacturing, assembly, and installation of a new helium liquefier with gas-bearing expansion turbines.
- Delivery of a Helium Liquefication Plant
- Cycle compressor, watercooled
- Oil Remover System with Gas Management Panel
- Coldbox incl. expansion turbines and freeze-out-purifier
- Gas dryer
- Process control technology (MSR)
- Pure Gas Buffer 4000L @ 16 Bar
- Gas phase seperator
- High-purity gas piping within the building
- Installation of all system components
- Commissioning of the entire system
- Maintenance of ongoing operations during conversion and construction phase, no significant losses
Realization date
10/2022Performance data
- Liquefication Rate:
- 20 l LHe/h without LN2 pre-cooling
- 40 l LHe/h with LN2 pre-cooling
- Compressor el. consumption: 56 kW
Contact
Institute of Physics
Bijenicka cesta 46
HR-10000 Zagreb, Croatia
Liquefication room

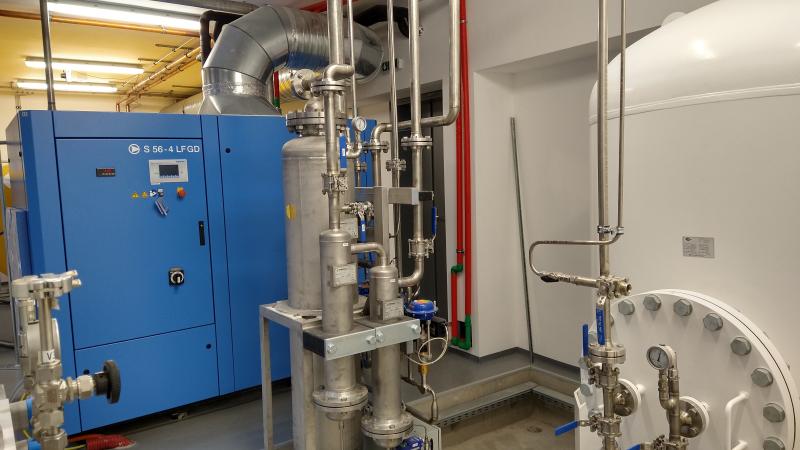

Cycle compressor and GMP-ORS

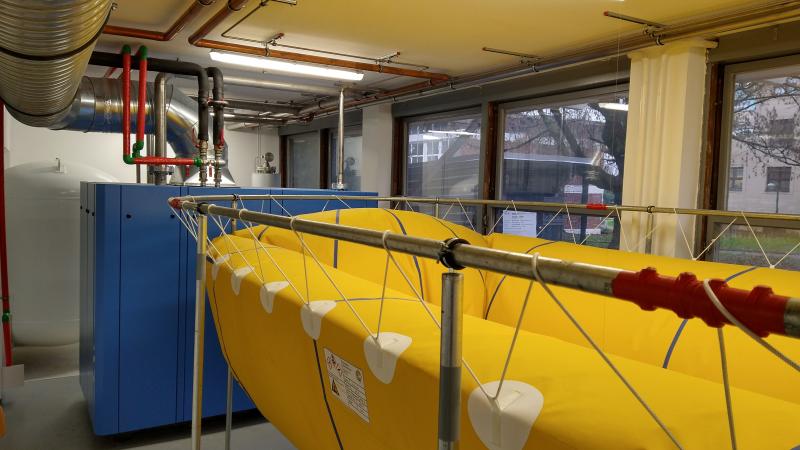

Cycle compressor and Balloon
