Liquefication
Construction of a VL100 helium liquefier, 36 L/h, at the University of Augsburg
Design, manufacturing, assembly, and installation of a new helium liquefier with gas-bearing expansion turbines.
Scope of Supply:
- Cycle compressor, watercooled
- Oil Remover System with Gas Management Panel
- Coldbox including expansion turbines and freeze out purifier
- High-purity gas buffer 1x 5,000 l @ 16 bar
- Gas dryer
- Process control technology (MSR)
- LHe Dewar 2,760 l
- Installation of all system components
- Commissioning of the entire system
- High-purity gas piping within the building
- Maintenance of ongoing operations during conversion and construction phase, no significant losses
Realization date
07/2023Performance data
- Liquefication Rate:
- 36 l LHe/h without LN2 pre-cooling
- Compressor el. consumption: 76 kW
Contact
University Augsburg
Hertha-Sponer-Weg
Universitätsstraße 1
86159 Augsburg
Liquefication Room

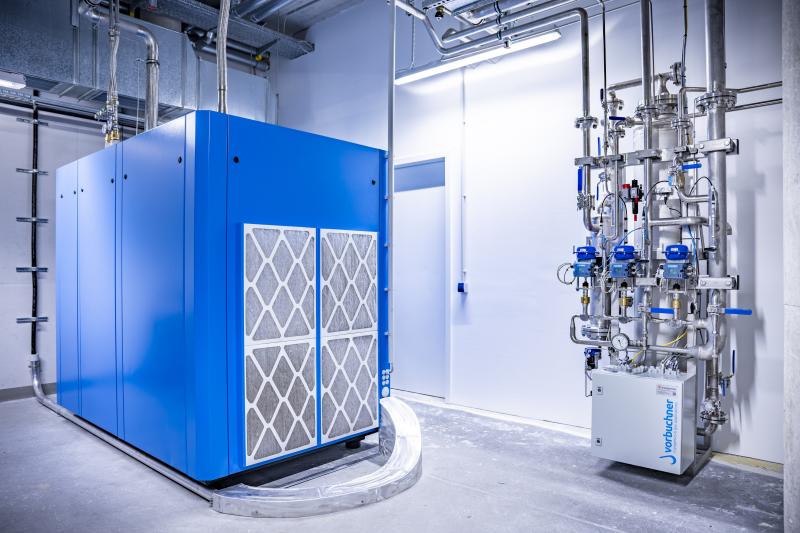

Cycle Compressor

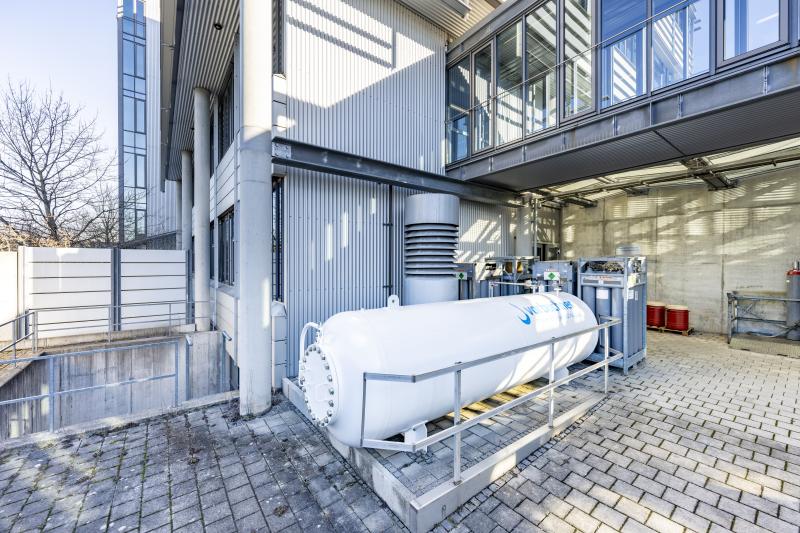

Pure Gas Buffer

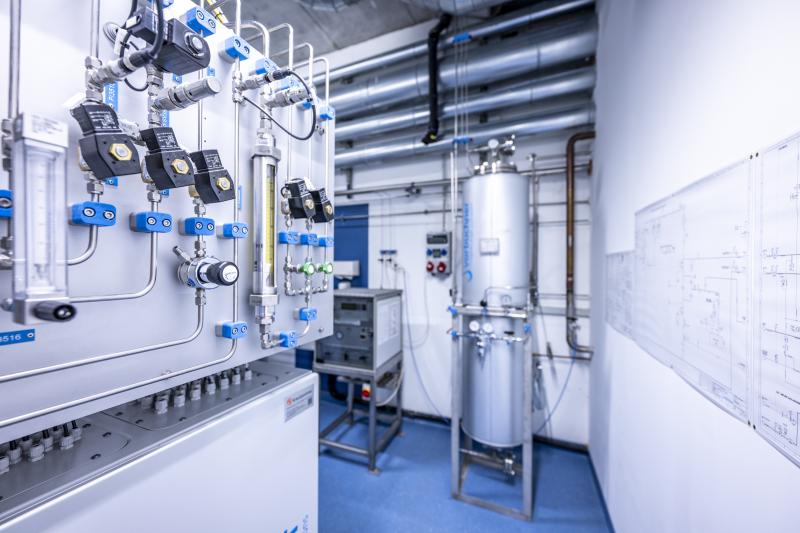

Instrument Panel VL100 and IGA

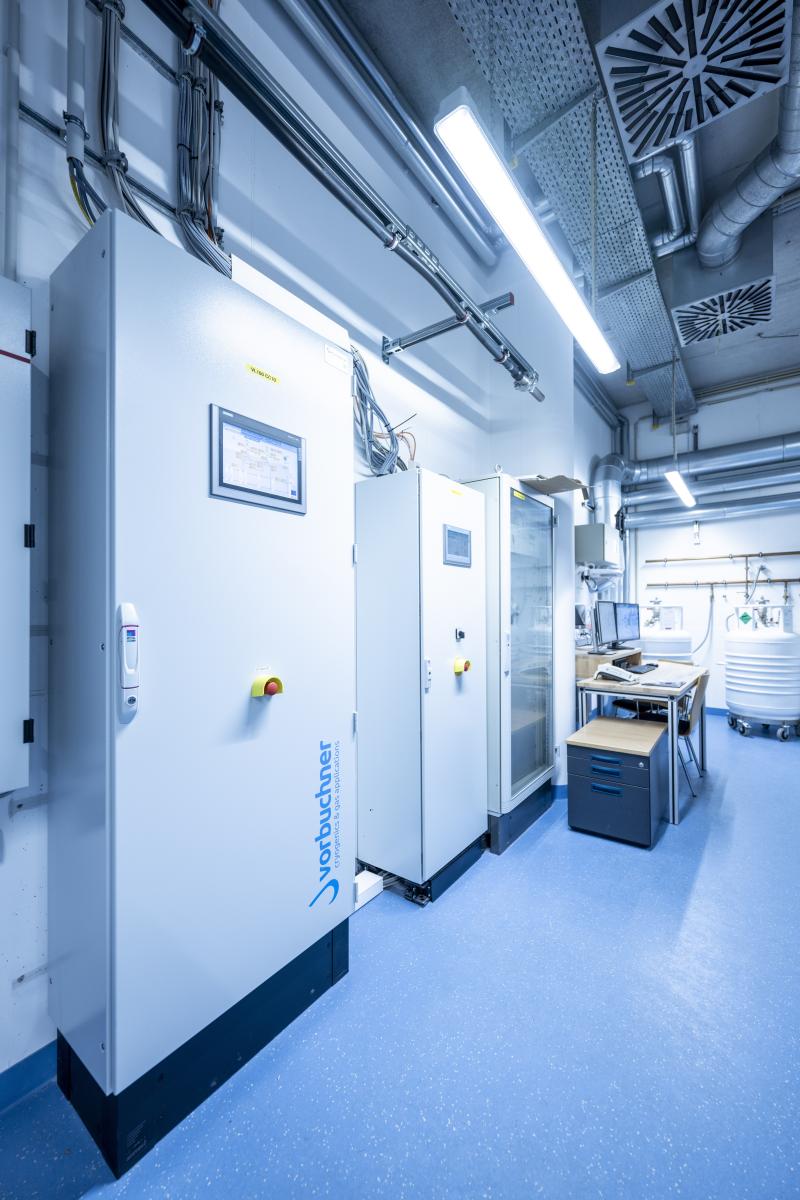

Control Cabinet
