Container with HPS
University Heidelberg

Helium Recovery as Container Solution

Recovery

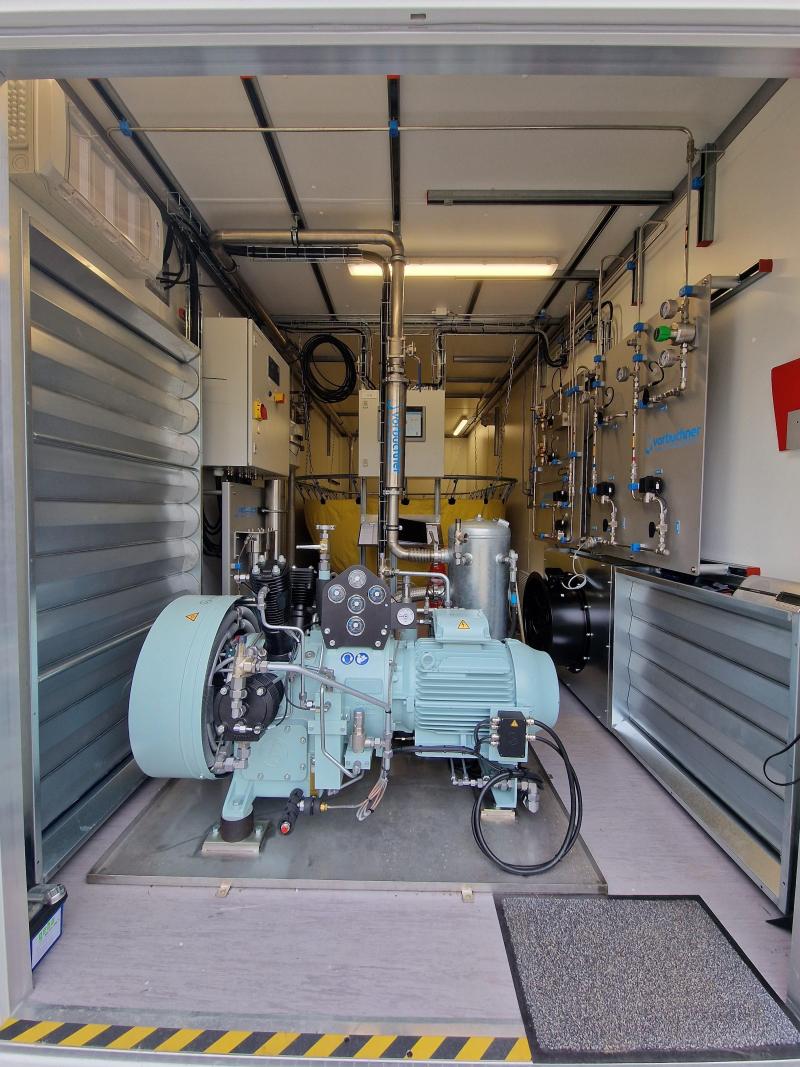

Delivery of a Helium Recovery System in a Container

  • Delivery of a Helium Recovery System in a Container
    • Helium ballon 15m³
    • Helium compressor (1x WP4341)
    • Oil Remover System

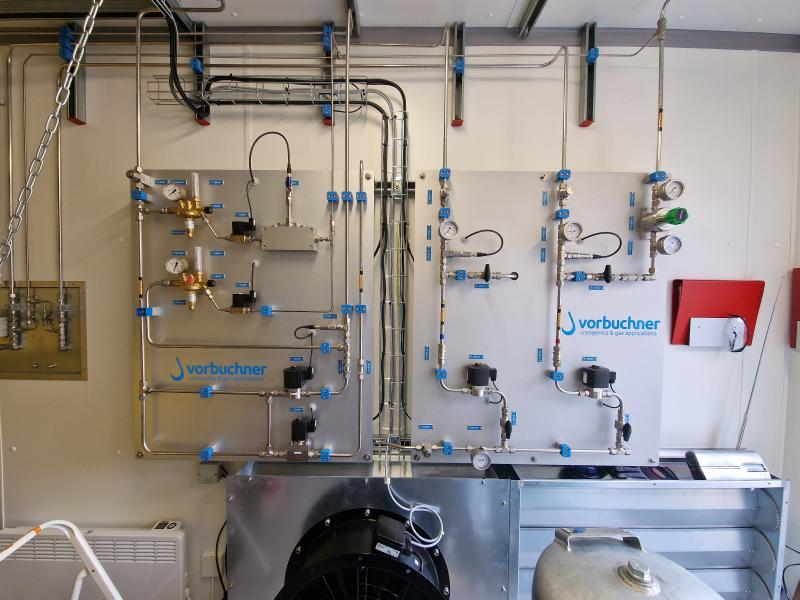

    • High Pressure Distribution Panel
    • High Pressure Analysis Panel
    • Gasmeter

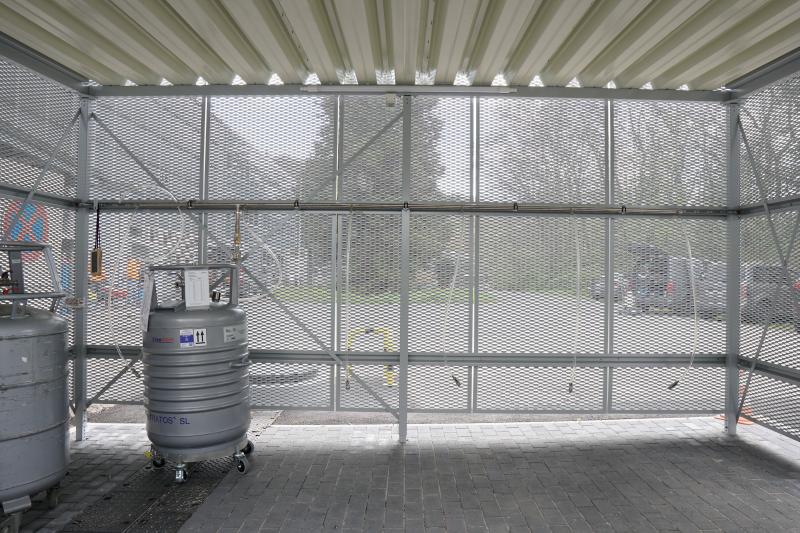

    • Mobile dewar station
    • He Storage 4.800L @ 200 Bar
  • Automatic gas distribution with the helium distribution panel
  • Automatic gas analysis
  • High-purity gas piping within the building
  • Installation of all system components
  • Commissioning of the entire system
Realization date
11/2022
Performance data

Compressor capacity: 43 m³/h

Storage Capacity GHe:

  • 8 bundels @ 600L @ 200 Bar
  • 1 Ballon 15m³

2 Storage groups

2 Mobile dewar stations

4 process connections
